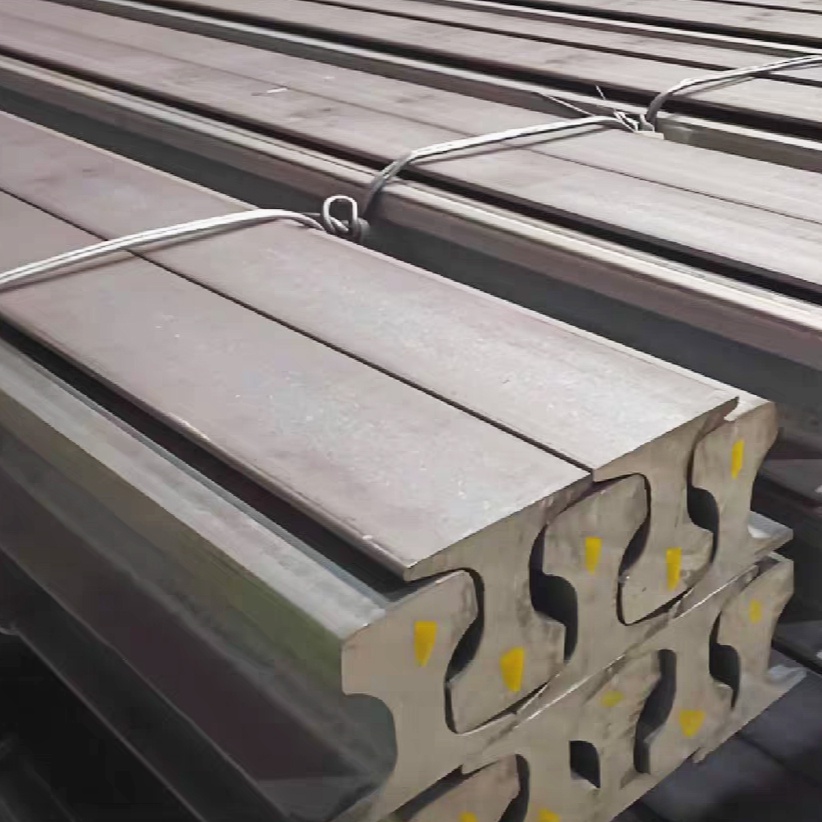

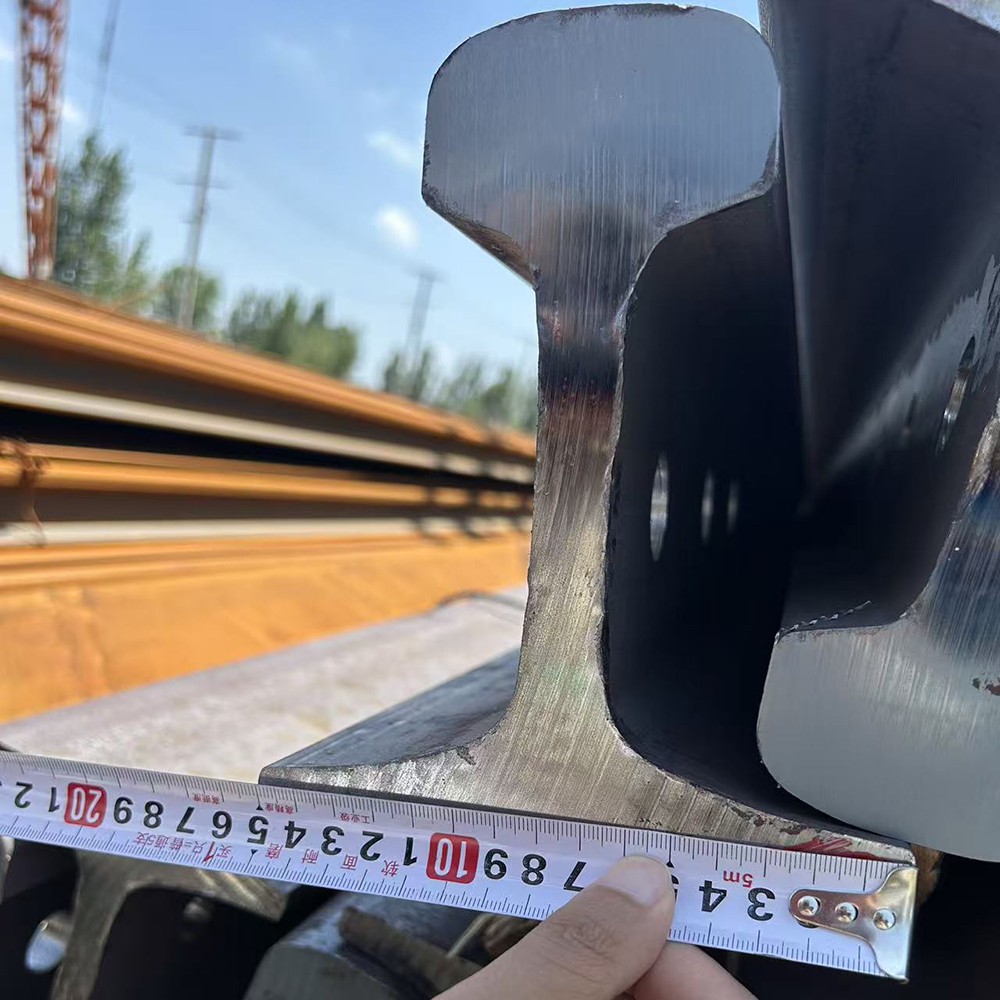

R50 steel Rail
View More

◉ Product Details

Steel rails are the main component of railway tracks. Its function is to guide the wheels of rolling stock forward, bear the huge pressure of the wheels, and transfer it to the sleepers. The track must provide a continuous, smooth rolling surface with minimal resistance for the wheels. In electrified railways or automatic block sections, rails can also be used as track circuits.

R50 steel Rail

Request A Quote

Submit

◉ Detail Page


UIC860-O UIC60 rail is widely used for state railway line of English countries, we can produce it by order, the MOQ should more than 500 tons, hardness can be R260/320HBW/350HT, length 12 to 30 meters, our products can accept any third-party inspection.


THE LIST OF Size
Name of CommoditySpecificatonMaterials (Steel   Grade)Standard of   ProductsTheory Weight   (kgs/M)Length of Dimension   (M)Packed In Bundle   With Iron Wire (pcs/bundle)
Light Rail4kgs/mQ235Q/YG001-20144kgs/m6,875
8kgs/mQ235Q/YG001-20148.42kgs/m55
12kgs/mQ235GB11264-201212.2kgs/m36
15kgs/mQ235/55QGB11264-201215.2kgs/m6,8,9,1028
18kgs/mQ235/55QQ/YG001-201418.06kgs/m21
22kgs/mQ235/55QGB11264-201222.3kgs/m21
24kgs/mQ235/55QQ/YG001-201424.46kgs/m21
30kgs/mQ235/55QGB11264-201430.1kgs/m15
Heavy Rail38kgs/mU71MnGB2585-200738.733kgs/M12,12.510
43kg/mU71MnGB2585-200744.653kgs/M10
50kgs/mU71MnGB2585-200751.514kgs/M10

45/50MnQ/YYG002-200831/34/36/39/41kgs/M12,12.510
Crane RailQU70U71MnYB/T5055-9352.8kgs/m1210
QU80YB/T5055-9363.69kgs/m10
QU100YB/T5055-9388.96kgs/m5
QU120YB/T5055-93118.1kgs/m5

Rail
Product name:Grooved Rail and Special Rail Hot rolled steel
Place of Origin:Shandong, China
Rail Heigth:63.0-170mm
Standard:AiSi, ASTM, bs, DIN, GB, JIS
Head Width:25-120mm
Grade:Q235/55Q/U71Mn/75V/50Mn/45Mn
Application:Railway Rail
Length:5-18M
Rail Heigth:63.0-170mm
Invoicing:by actual weight
Delivery Time:8-14 days
Technique:Hot Rolled/Cold Rolled rail
Port:Tianjin、Shanghai、Qingdao
Packaging Detailsin bundles, in bulk, customized packing.
