◉ Product Details

Standard rails have an asymmetrical “I”-shaped cross-section consisting of three main parts: the rail head, the web, and the Base.

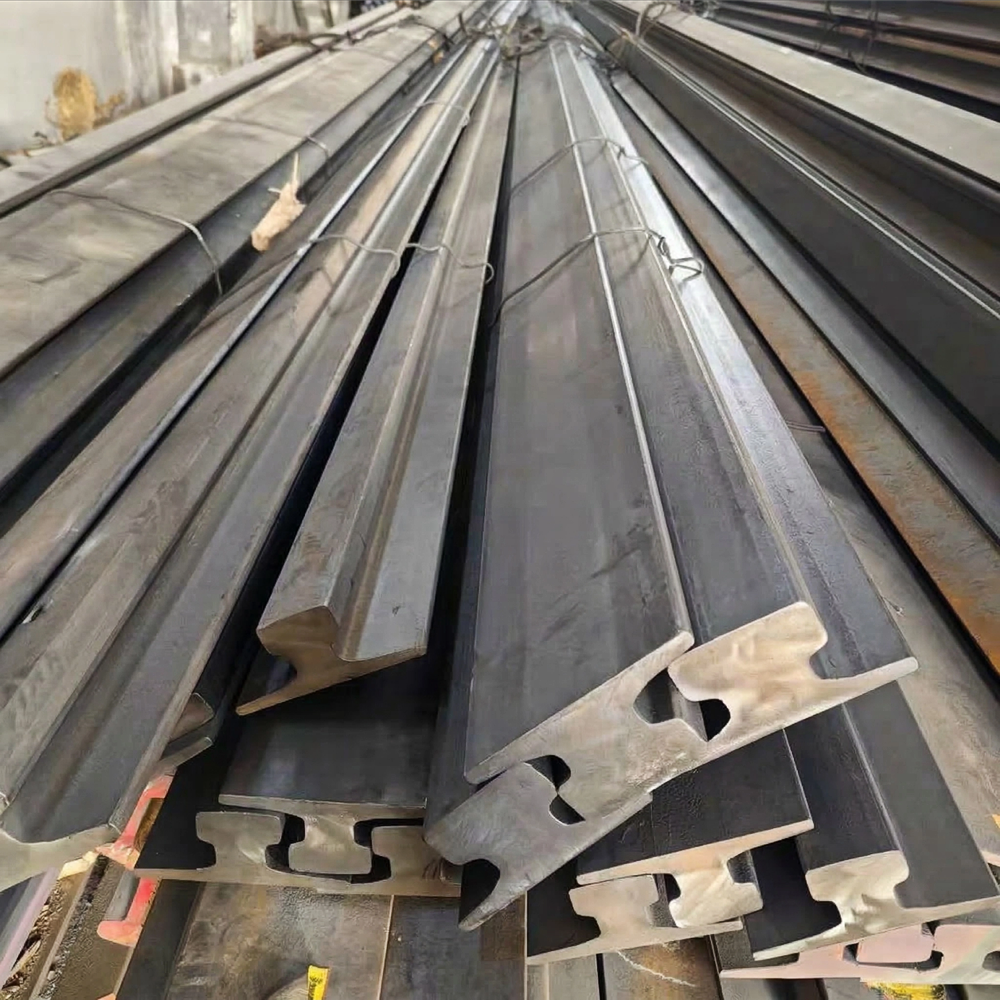

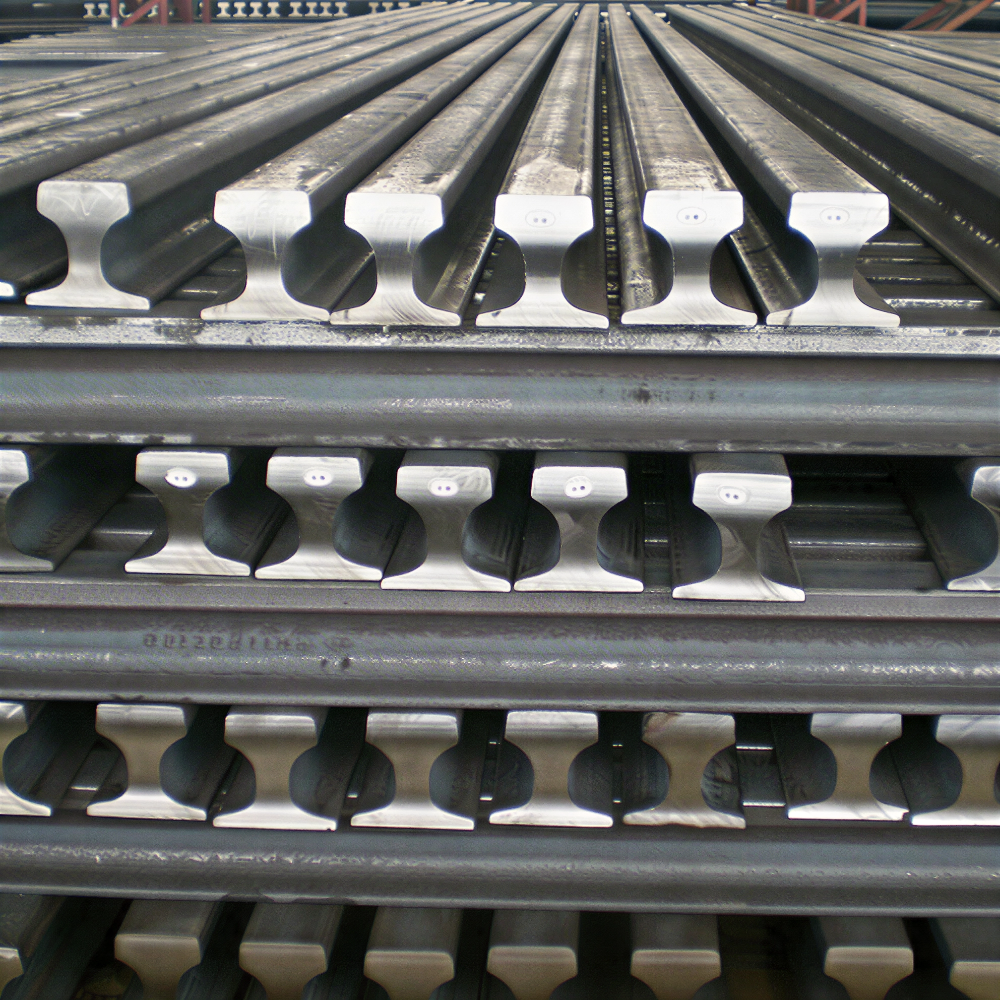

Heavy Rail steel

Name: Heavy Rail steel
SKU: 0

Request A Quote

◉ Detail Page

UIC860-O UIC60 rail is widely used for state railway line of English countries, we can produce it by order, the MOQ should more than 500 tons, hardness can be R260/320HBW/350HT, length 12 to 30 meters, our products can accept any third-party inspection.

THE LIST OF Size
Name of Commodity	Specificaton	Materials (Steel Grade)	Standard of Products	Theory Weight (kgs/M)	Length of Dimension (M)	Packed In Bundle With Iron Wire (pcs/bundle)
Light Rail	4kgs/m	Q235	Q/YG001-2014	4kgs/m	6,8	75
	8kgs/m	Q235	Q/YG001-2014	8.42kgs/m		55
	12kgs/m	Q235	GB11264-2012	12.2kgs/m		36
	15kgs/m	Q235/55Q	GB11264-2012	15.2kgs/m	6,8,9,10	28
	18kgs/m	Q235/55Q	Q/YG001-2014	18.06kgs/m		21
	22kgs/m	Q235/55Q	GB11264-2012	22.3kgs/m		21
	24kgs/m	Q235/55Q	Q/YG001-2014	24.46kgs/m		21
	30kgs/m	Q235/55Q	GB11264-2014	30.1kgs/m		15
Heavy Rail	38kgs/m	U71Mn	GB2585-2007	38.733kgs/M	12,12.5	10
	43kg/m	U71Mn	GB2585-2007	44.653kgs/M		10
	50kgs/m	U71Mn	GB2585-2007	51.514kgs/M		10
		45/50Mn	Q/YYG002-2008	31/34/36/39/41kgs/M	12,12.5	10
Crane Rail	QU70	U71Mn	YB/T5055-93	52.8kgs/m	12	10
	QU80		YB/T5055-93	63.69kgs/m		10
	QU100		YB/T5055-93	88.96kgs/m		5
	QU120		YB/T5055-93	118.1kgs/m		5

Rail
Product name:	Grooved Rail and Special Rail Hot rolled steel
Place of Origin:	Shandong, China
Rail Heigth:	63.0-170mm
Standard:	AiSi, ASTM, bs, DIN, GB, JIS
Head Width:	25-120mm
Grade:	Q235/55Q/U71Mn/75V/50Mn/45Mn
Application:	Railway Rail
Length:	5-18M
Rail Heigth:	63.0-170mm
Invoicing:	by actual weight
Delivery Time:	8-14 days
Technique:	Hot Rolled/Cold Rolled rail
Port:	Tianjin、Shanghai、Qingdao
Packaging Details	in bundles, in bulk, customized packing.
