Keywords: Drill Collar, Spiral Drill Collar, Non-Magnetic Drill Collar, Steel Drill Collar

Standard: API SPEC 7-1

Steel Grade: AISI 4145H

Sizes: 3 1/8" -- 11"

Connected Type: NC, IF, REG

Length: 30 – 31 ft ± 6 ft.

Type of Design: （1）Plain;（2） With A Recess of the Elevator; （3） With A Recess of the Elevator and Power Slips; （4） Spiral and A Wide Range of Type Mixtures.

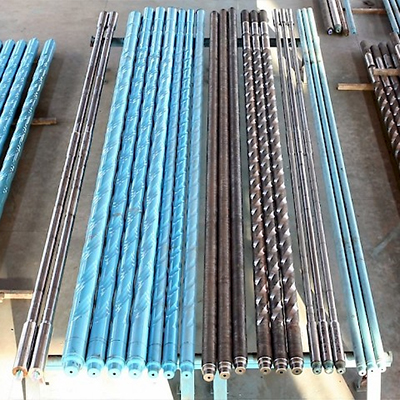

Drill collars are extra-heavy integral tools used to concentrate weight onto the drill bit so as to produce sufficient force for the drill bit to break rock efficiently while drilling. They are made of AISI 4145H modified steel and are connected between drill pipes and drill bits.

Drill collars come in 30 or 31 foot lengths and are furnished as slick (as-rolled surface finish) or spiraled. Spiraled drill collars have grooves on its external surface which maintains an even flow of drilling fluid around the collar to equalize pressure and reduce differential-sticking of the collar to the wall of the oilwell.

Our drill collar connections comply with dimensional requirements specified in API Spec. 7/7-1 and guidelines presented in API RP7G. Drill collars also come with slip and elevator recesses for safe and efficient handling. Slip and elevator recesses can be used together or separately and are machined in compliance with API RP7G guidelines unless otherwise specified.

NON-MAGNETIC DRILL COLLARS

TECHNICAL SUMMARY

As you drill in areas closer to the earth's magnetic poles, it is essential to use a non-magnetic drill collar. Our non-mag drill collars offer strength and hardness while neutralizing magnetic inference. Compatible with standard drill string tools and stabilizers, our non mag drill collars are manufactured to API Spec 7-1. Inventory includes:

（1）Slick

（2）Flex

（3）Spiral

（4）Pony

We treat our non-mag material ID with a shot peening operation to compress the inside diameter which prevents stress corrosion while drilling in H2S environments.

Resistant to stress corrosion in sour gas environments

Compatible with standard drill string tools and stablizers

Spiraling available on request

Used to add weight to the bit and stiffness to bottom hole assembly, our Drill Collars are an invaluable downhole tool.

STEEL DRILL COLLARS

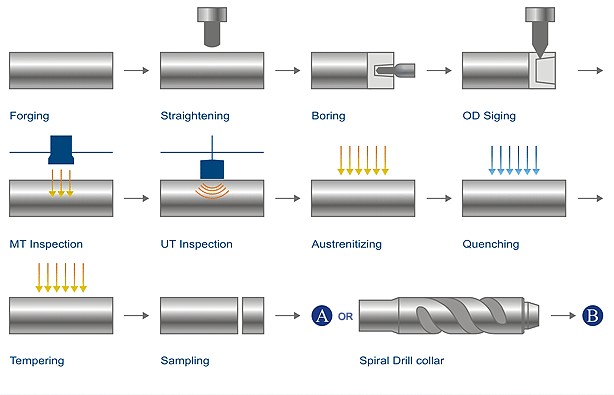

To keep you drilling in the right direction, run our Drill Collars in combination with our Stabilizers to resist bucking. Manufactured from an AISI 4145H modified heat treated alloy steel, our strict quality assurance guidelines assure metallurgical integrity of each and every bar.

Our Drill Collar bars are batch or continuous line heat treated and have both cold-worked and Phosphate coated connections.
